Quotes with our advisors on WhatsApp +52 6623539319 more information about this product please contact We are very happy to assist you with this number.

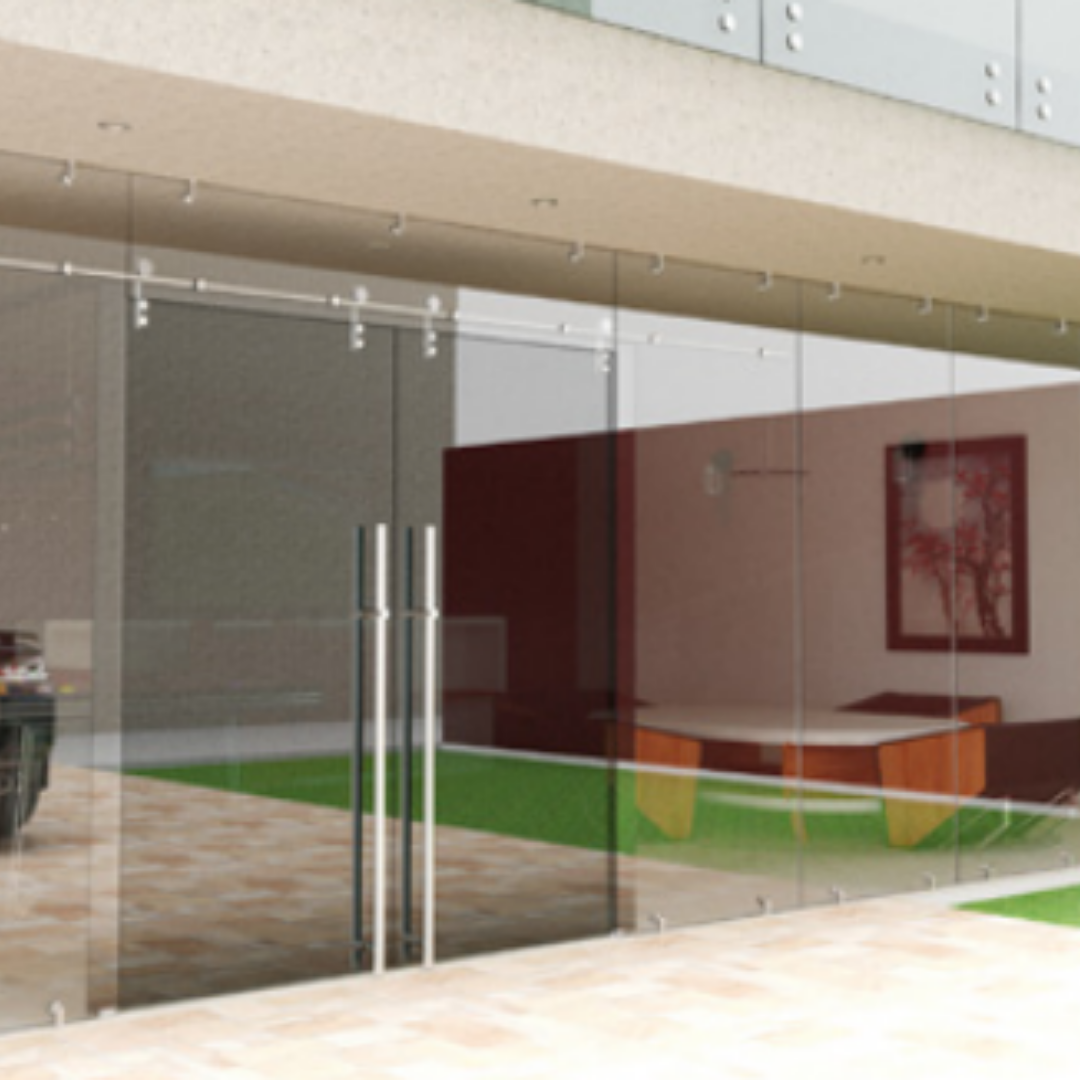

If you are an aluminum worker, glazier and installer - engineer, architect or interior designer, this product will be a good idea to divide areas in your home or in offices and shops.

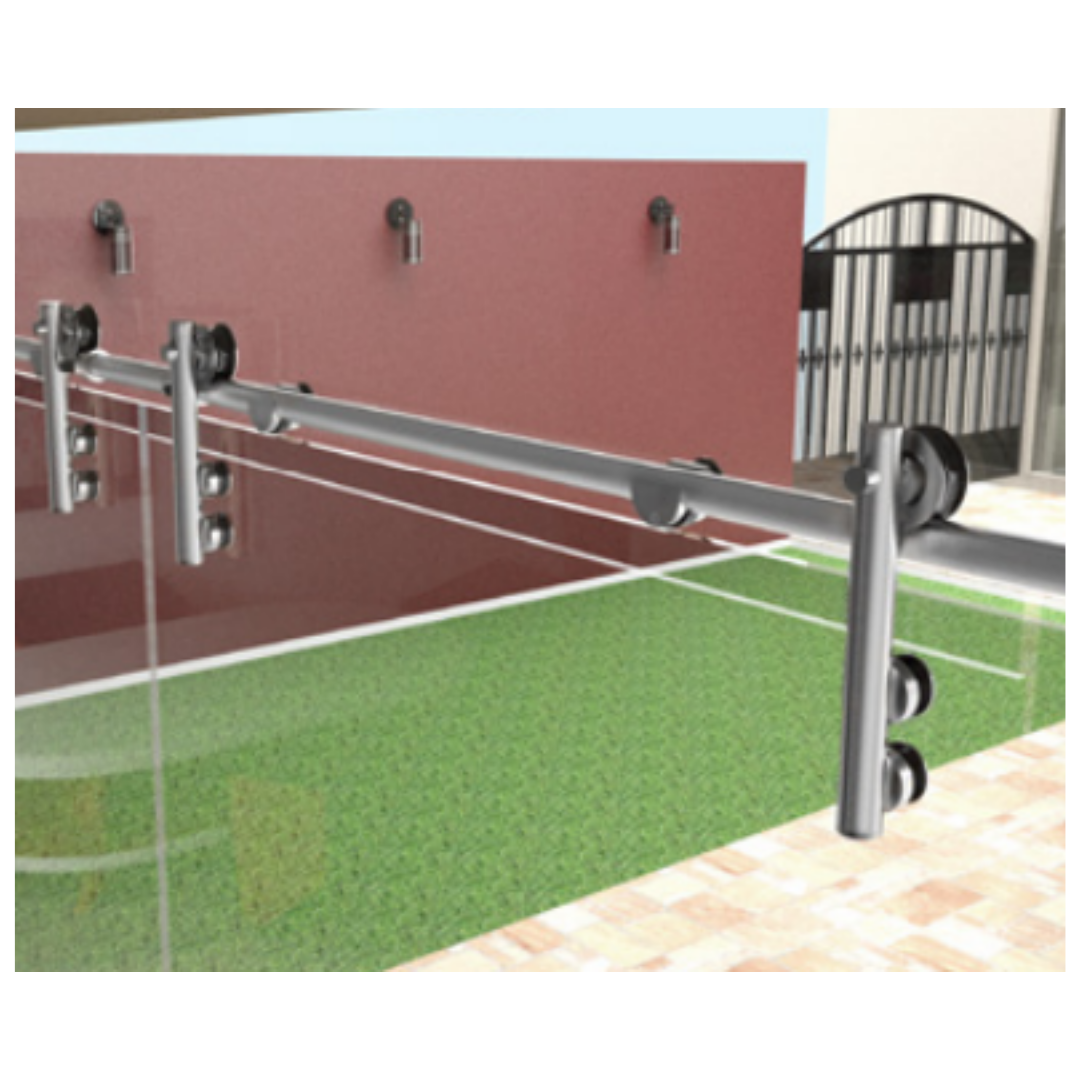

The Oaxaca type I sliding system is designed for wall installations, fixed glass installations, a combination of both and parapets.

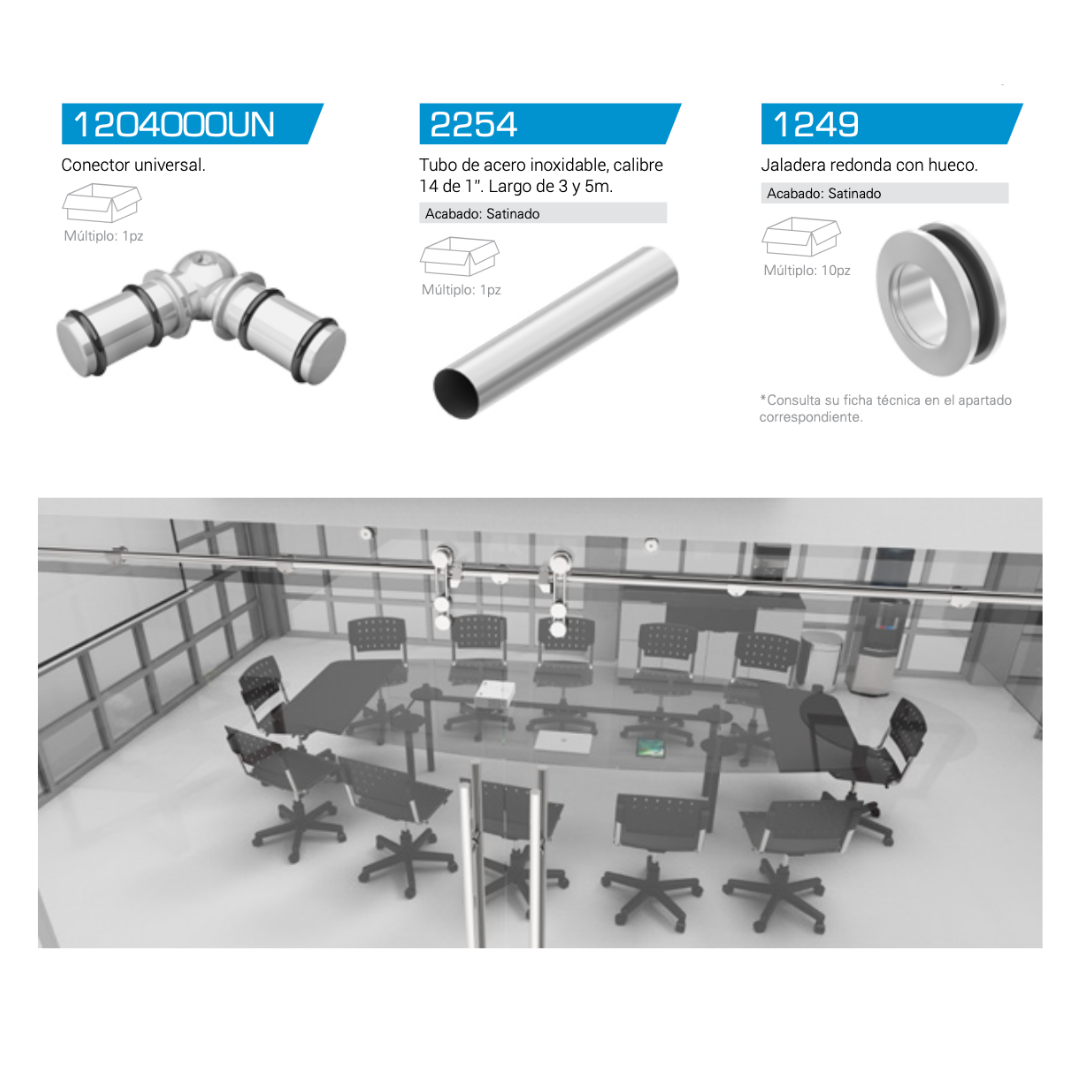

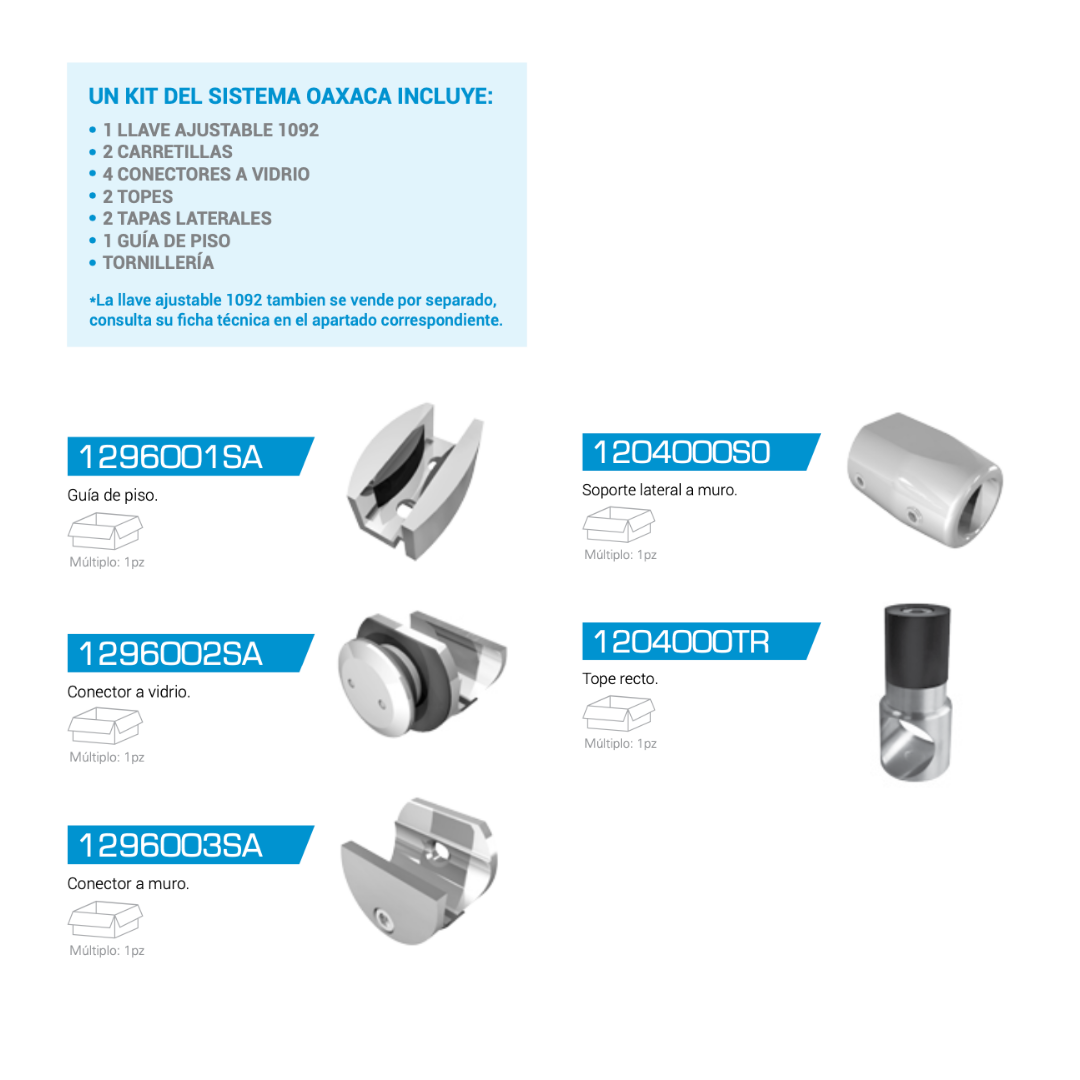

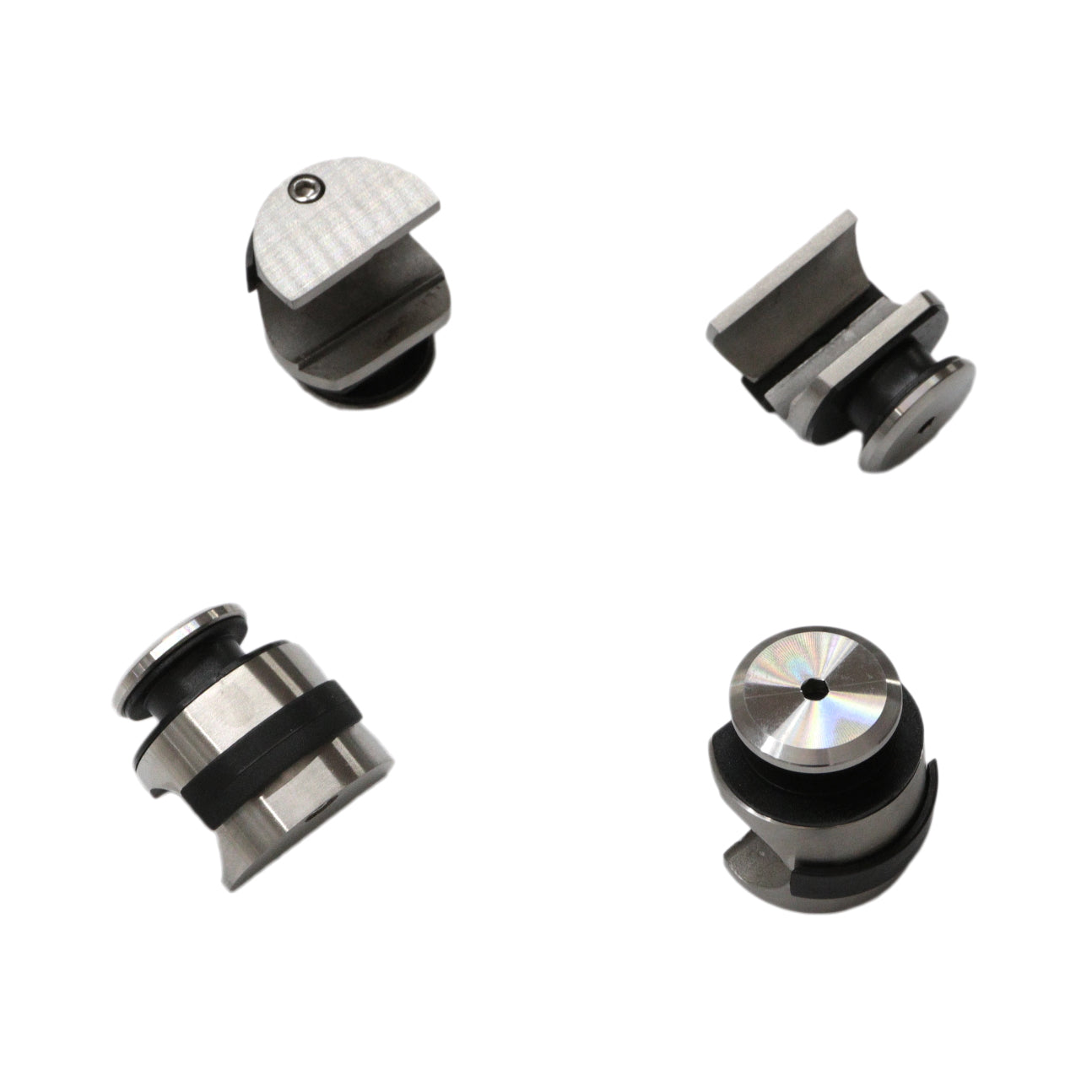

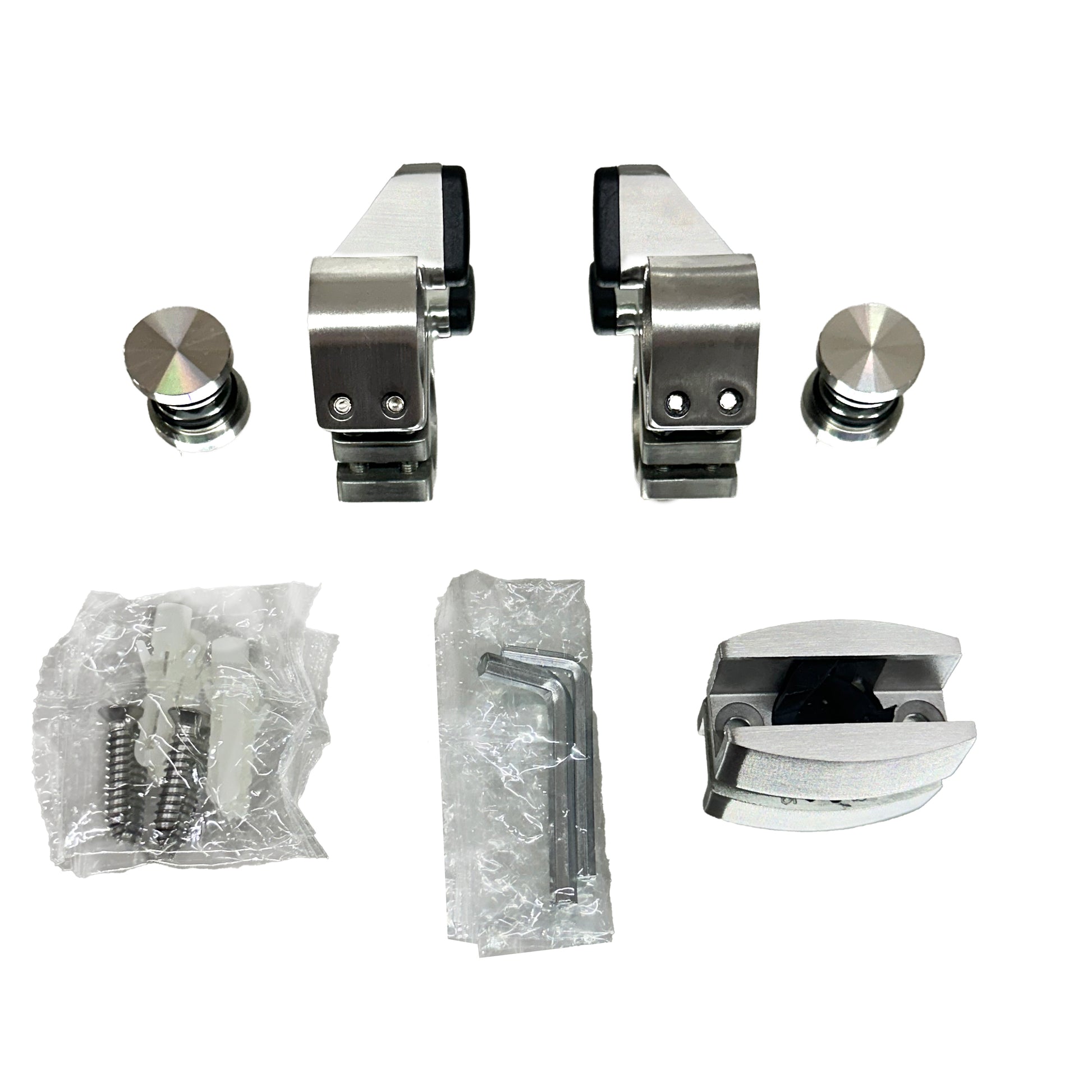

The components of this system provide various solutions to your projects, sliding doors, space divisions and even bathroom doors.

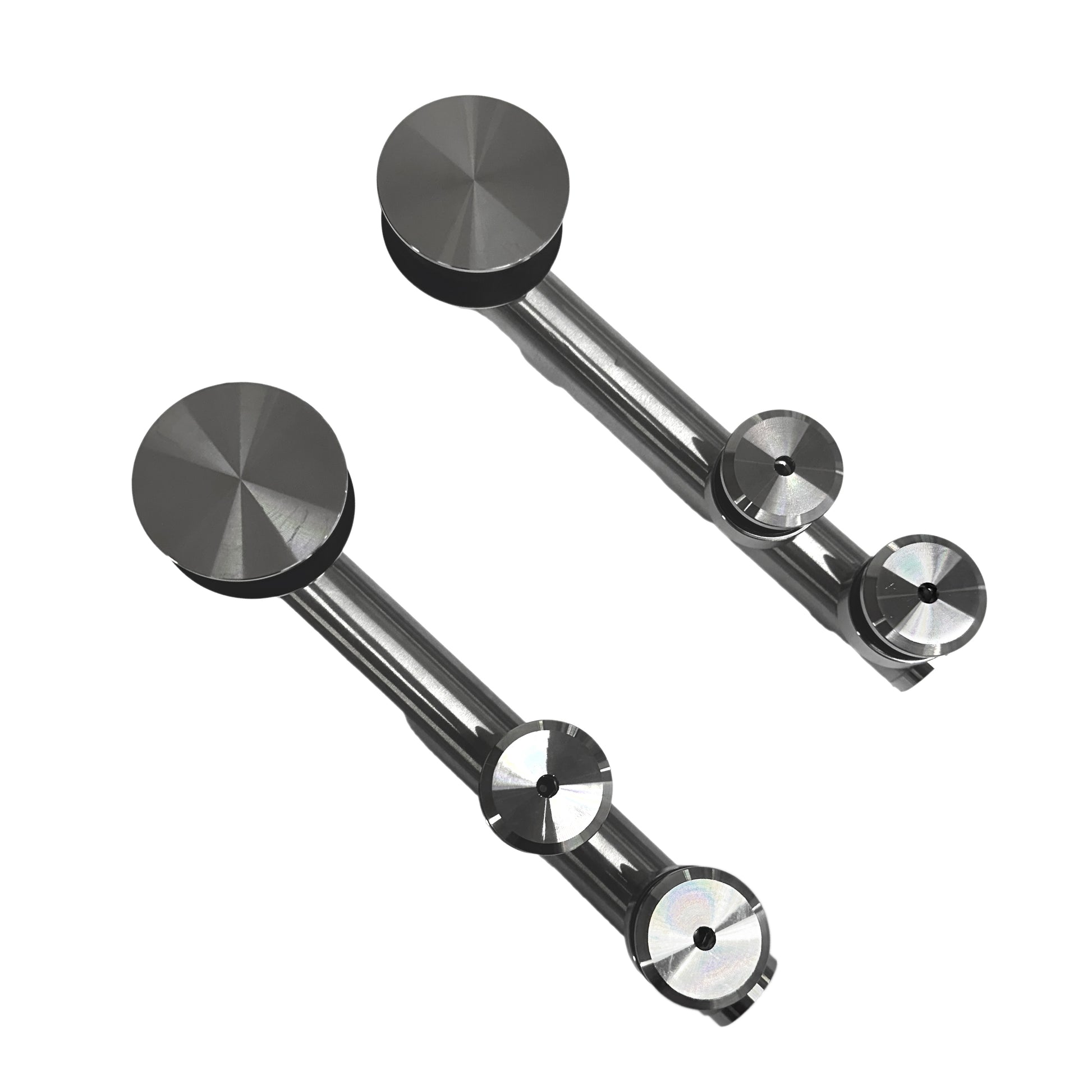

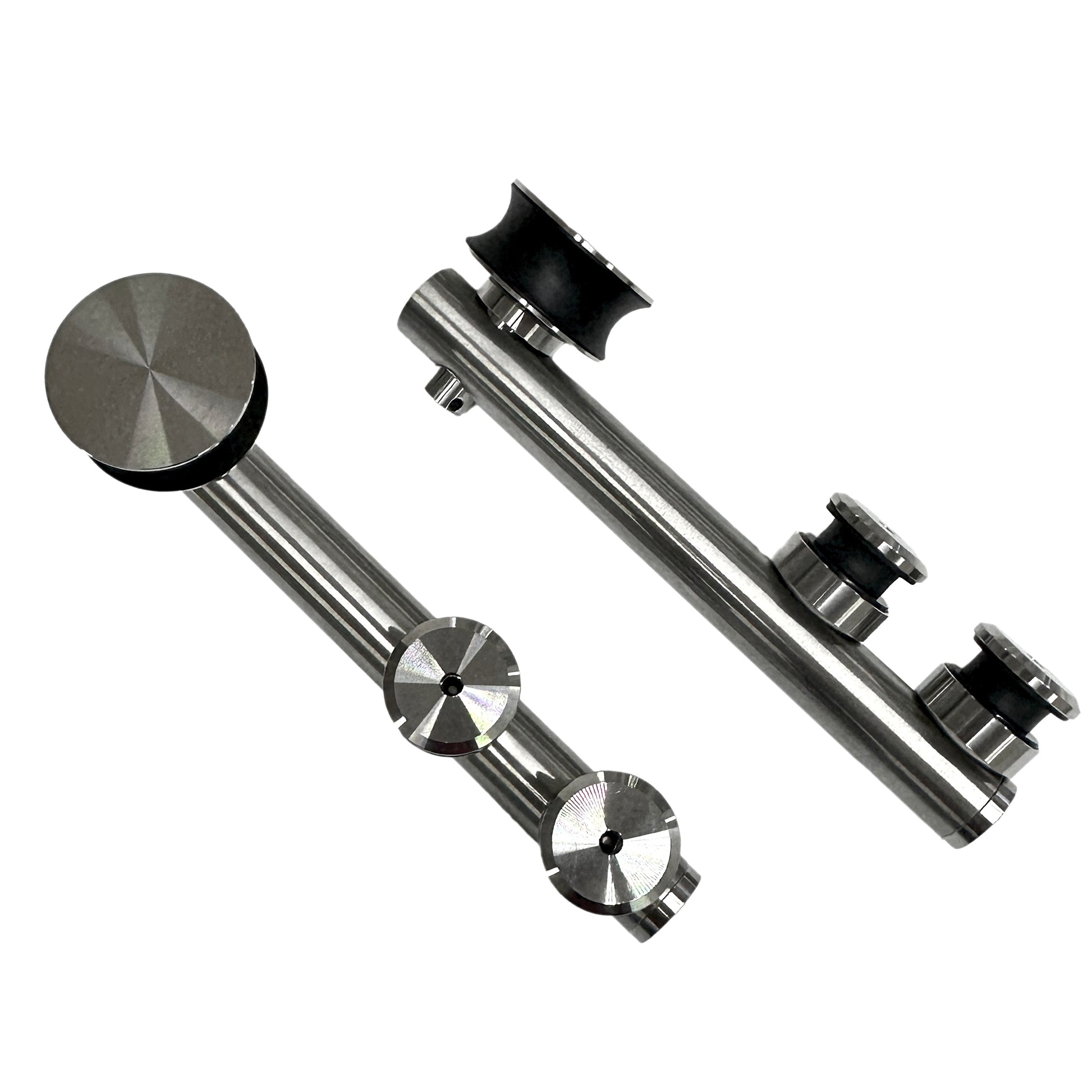

A pair of wheelbarrows supports a maximum of 100kg of weight, and are designed for glass from 9 to 12mm thick. Maximum weight 100kg thickness Thickness 9 to 12mm thickness
The holes in the parapet and the fixed ones have a recommended separation between centers of 400 and 500mm: It is recommended that you leave a width overlap between the sliding and the fixed one, of at least 50mm.
