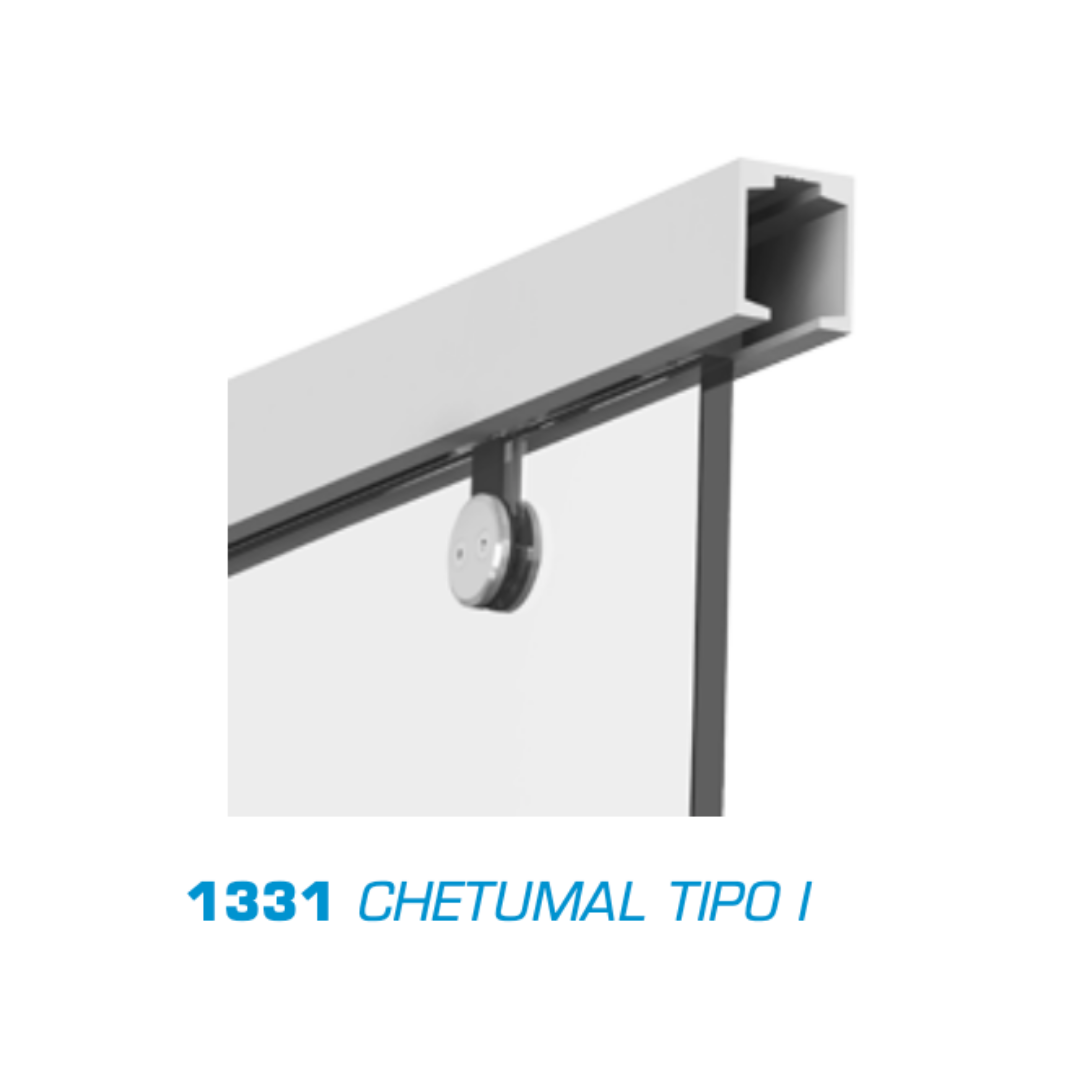

Chetumal I Sliding System Kit SKU 1331

Chetumal type I sliding system.

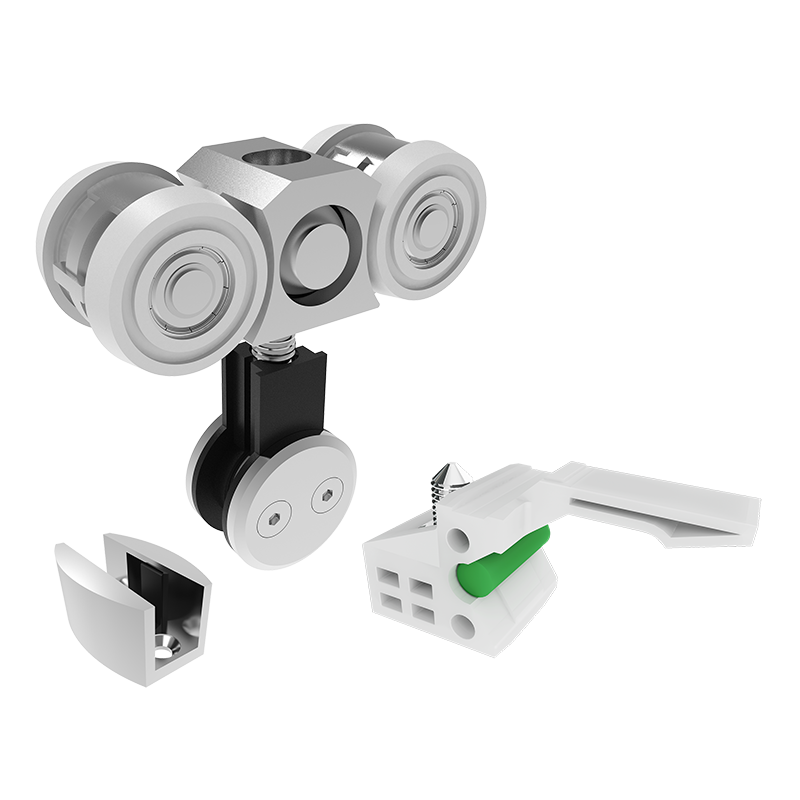

Includes: 2 trolleys, 2 stops and 1 floor guide.

Satin and Black Color

Material Stainless Steel.

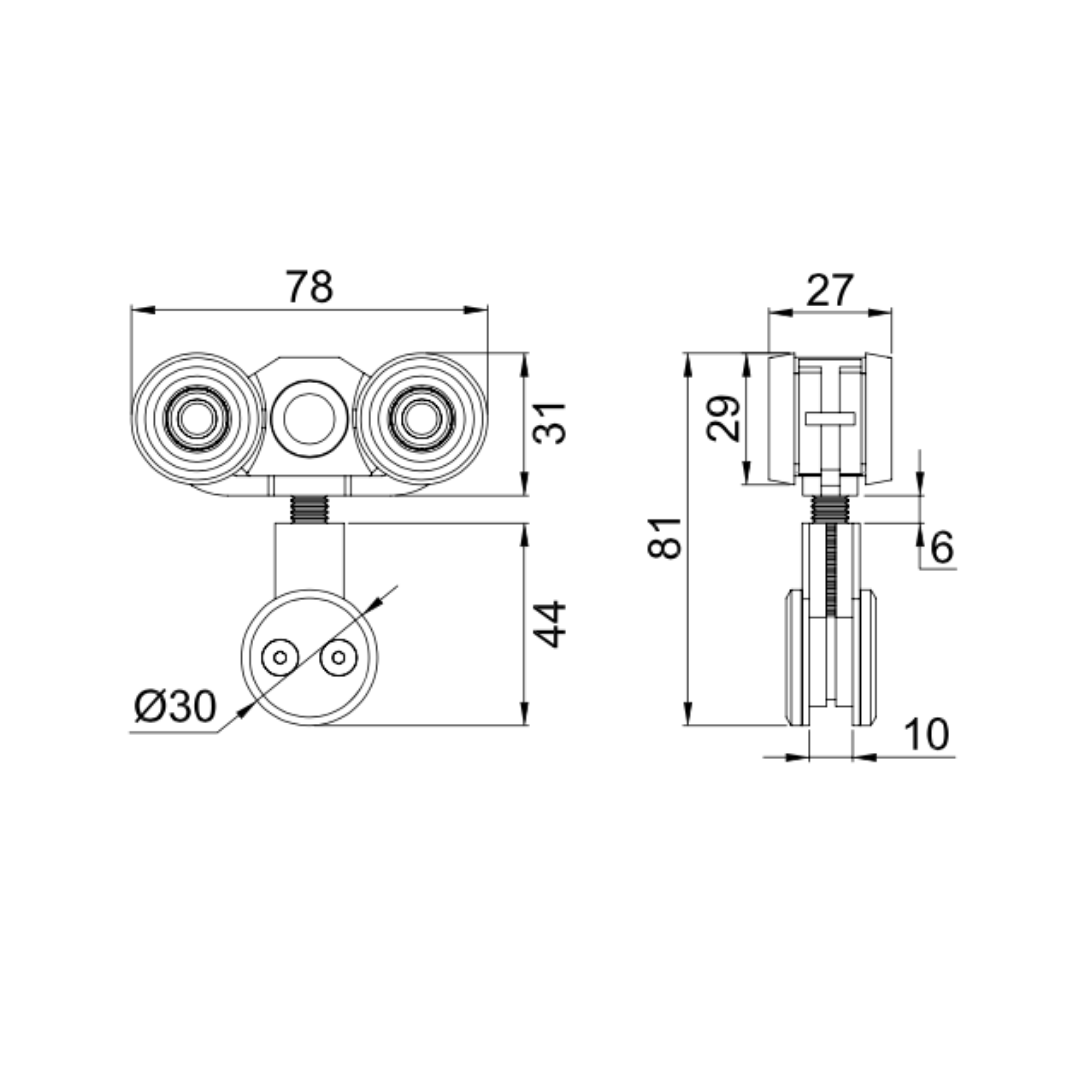

Length 78mm width 81mm Weight 270gm.

Contents 2 Wheelbarrows, 2 Stops, 1 floor guide,

The Forklifts are installed within the simple profile (1333001NA) or within the fixed sliding profile (1333003NA).

The function of the stop is to brake the forklift. The stops are installed inside the Simple Profile (1333001NA) or inside the Fixed Sliding Profile ( 1333003NA) at the height where you want the forklift to stop so that the glass doors close precisely fulfilling their function.

Floor guide, used to guide sliding doors at the same height as the profile, the floor guide is installed using plugs and screws that are required according to the floor surface.

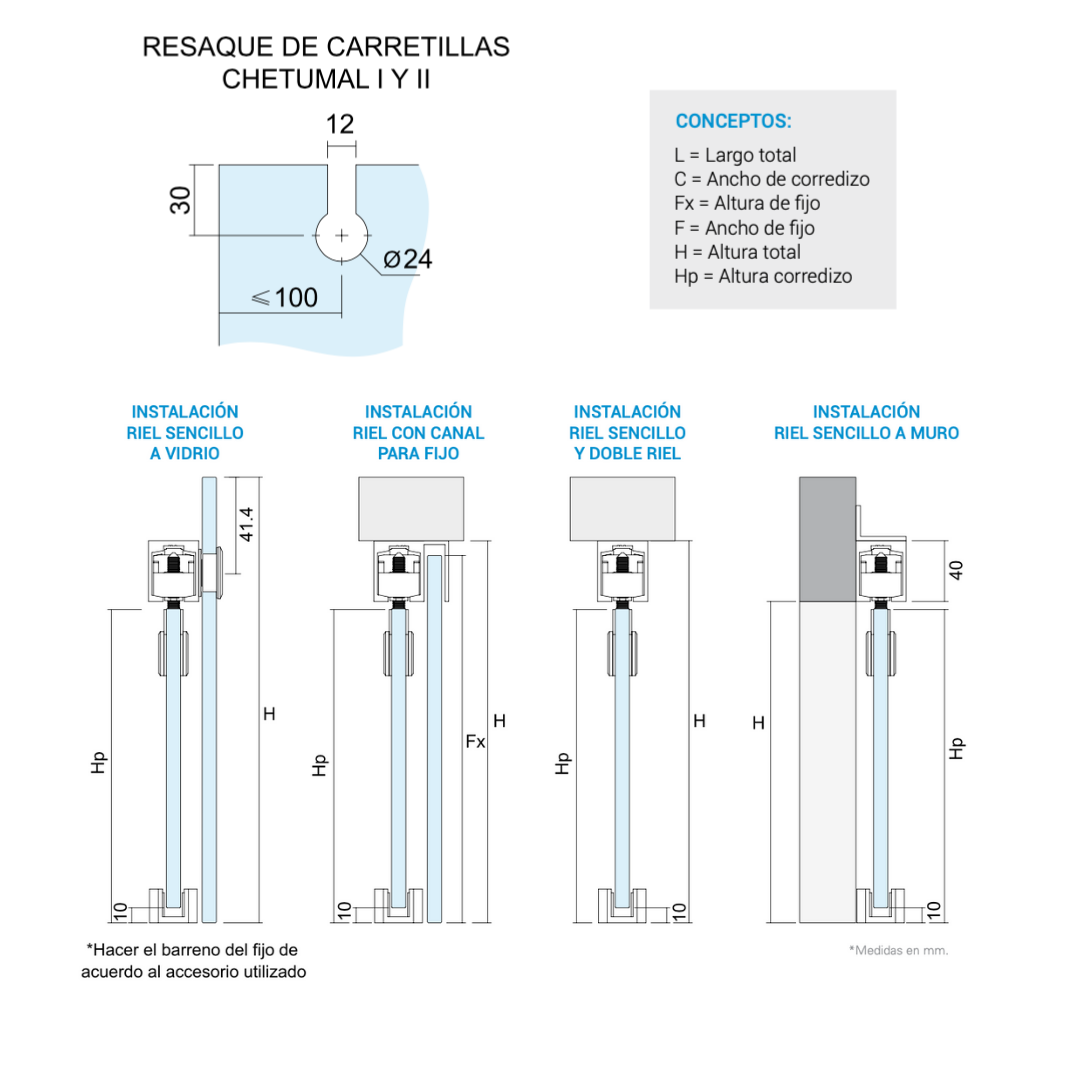

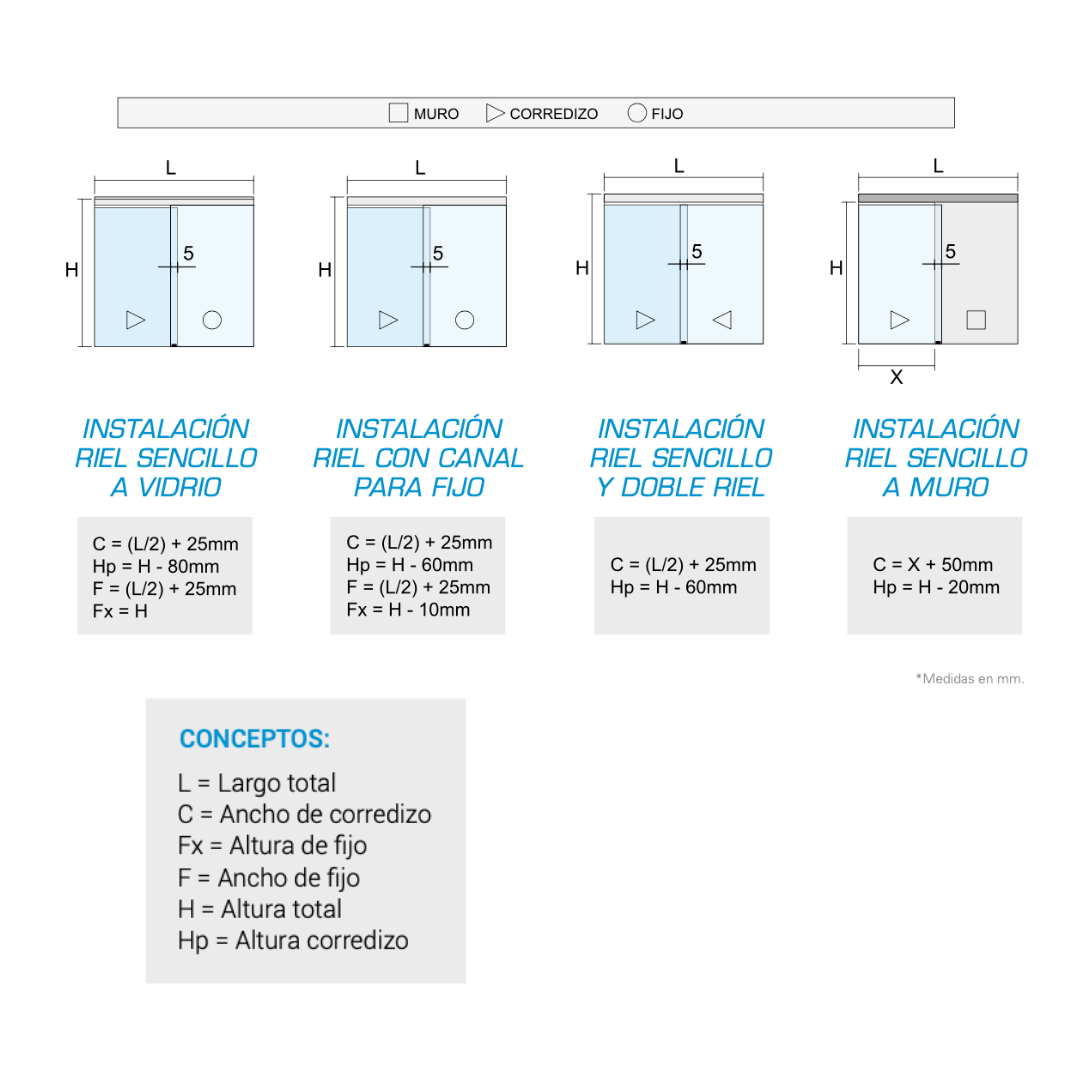

For the measurements of the tempered glass recesses, we recommend following the instructions in the template image 2 of the product.

Tools needed:

-Allen wrench.

-Wrench for Nuts.

-Rotary hammer.

-Drill.

-Star bit for drill.

-Hammer.

Herralum Brand Product
