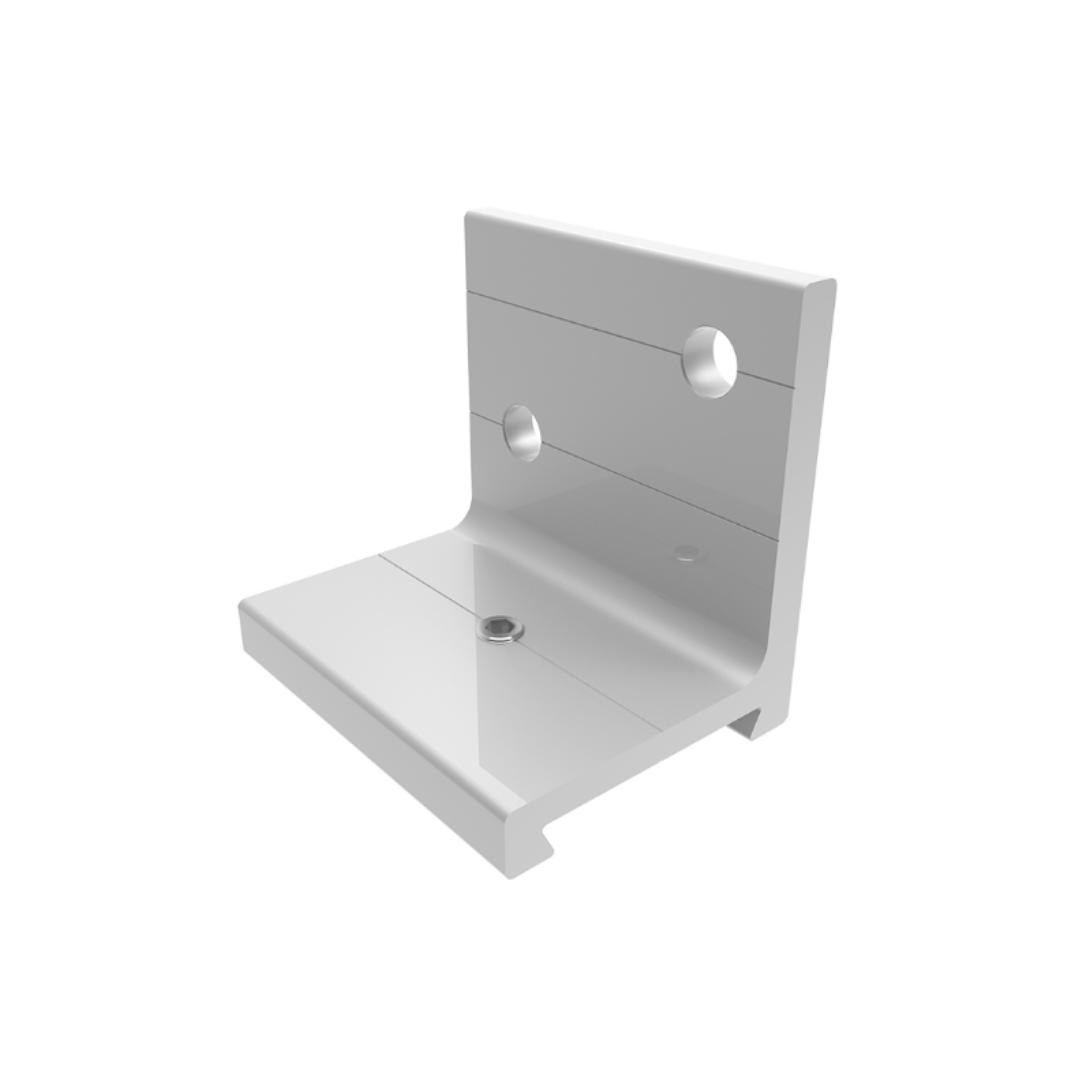

Upper “L” clip for installation of the Huatulco System SKU 1200000GL

Upper “L” clip for installation of the Huatulco system on a wall or door.

Natural color.

Material Aluminum.

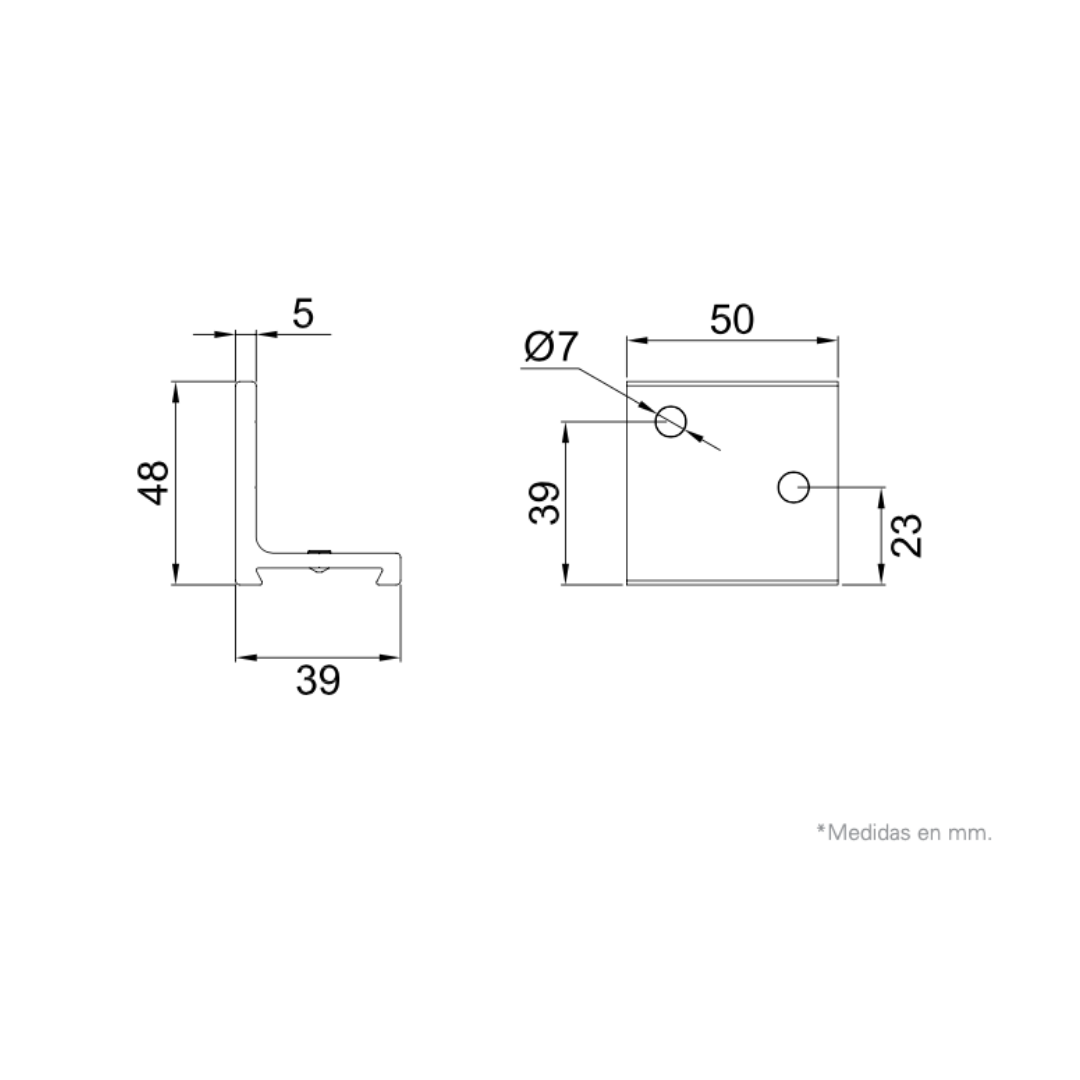

Length 50mm width 40mm Weight 52gm.

Content 1pc.

The function of this piece is to support the Aluminum Rail Profile (2200300NA) of the Huatulco System. The piece is installed on the wall once the level line that must follow the height of the wall is marked. Aluminum Rail Profile (2200300NA) for better performance.

*It is recommended to install a piece with 1m of separation between them throughout the Huatulco system.

**It is recommended to use screws and plugs based on the resistance required by the wall or surface where it will be installed.

Tools needed:

-Rotary hammer.

-Drill.

-Star bit for drill.

-Hammer.

-Taquettes.

-Screws.

Herralum Brand Product
